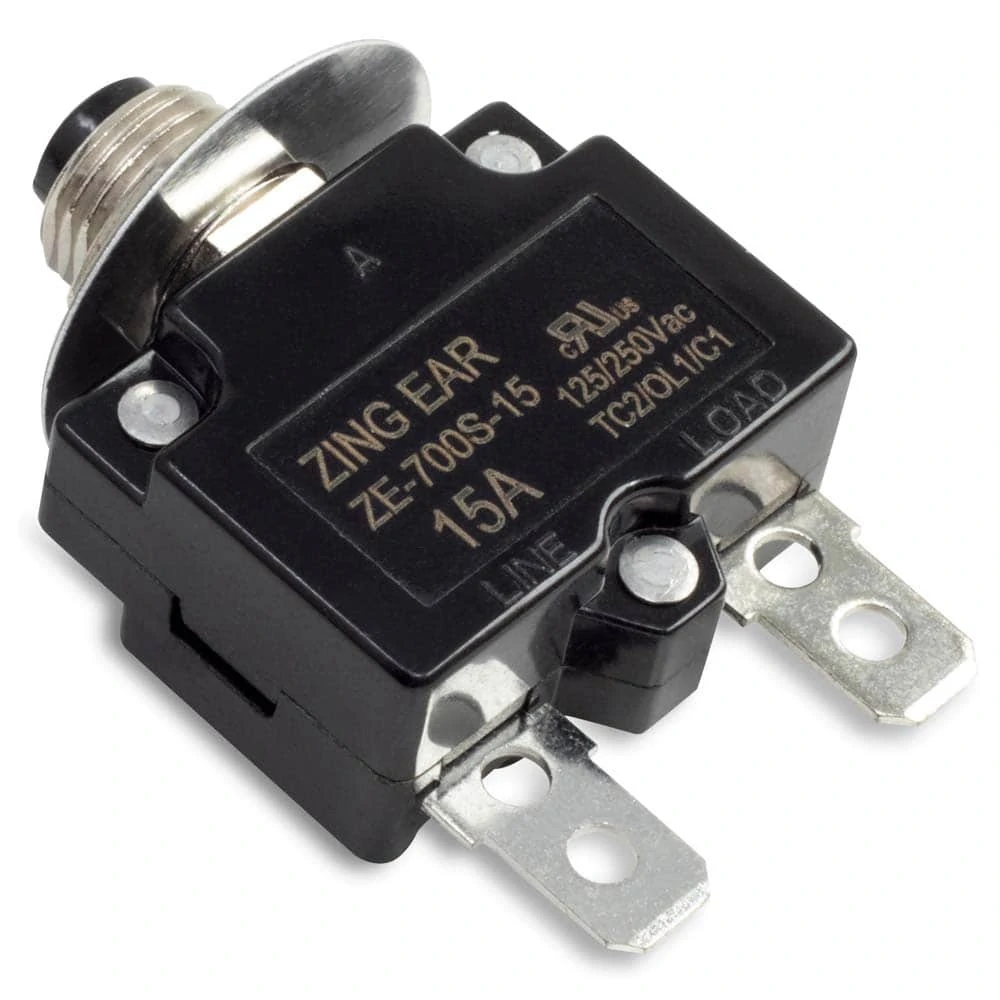

Zing Ear ZE-700S-15 15A Thermal Push Button Circuit Breaker

$6.95

  • 90-Day returns
  • 1-Year warranty
  • Fast shipping
  • Current Rating: 15 Amps

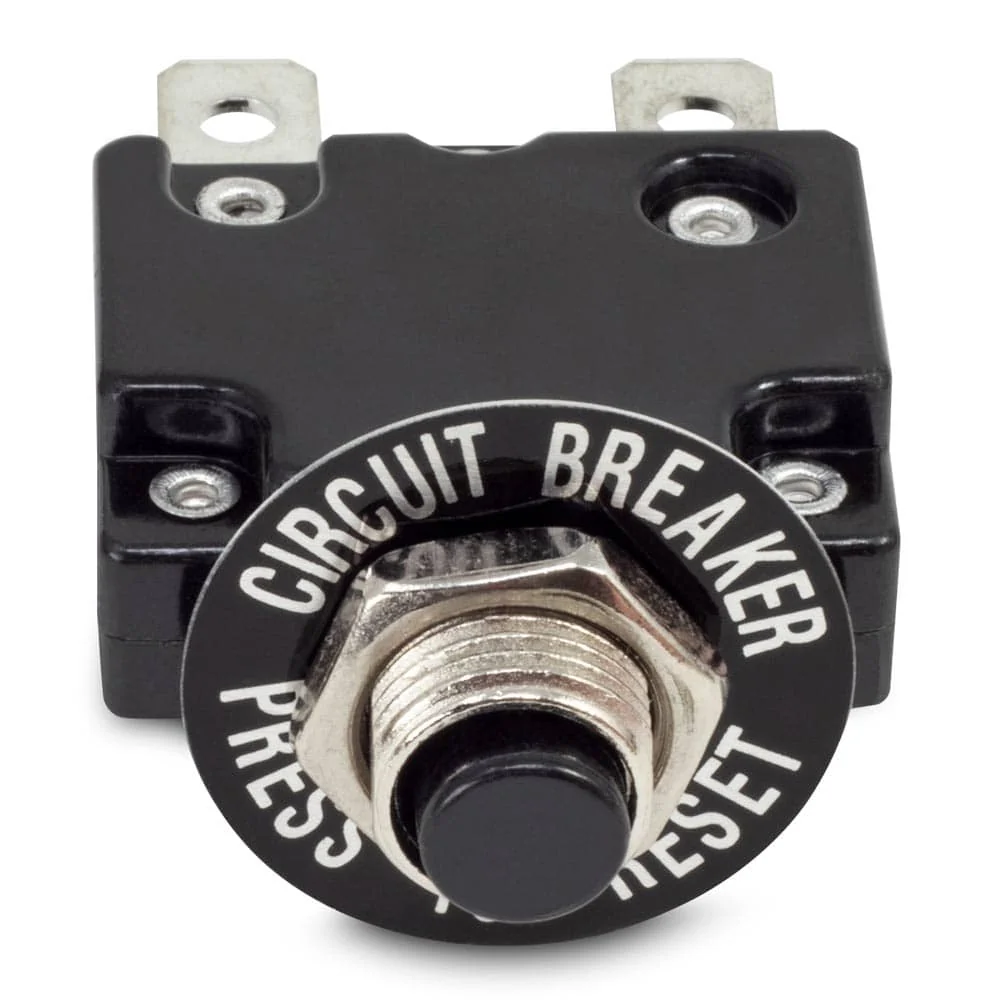

  • Features a push to rest button that pops out with breaker trips
  • Voltage Rating: 125 Volts AC, 250 Volts AC TC2/OL1/C1
  • Used to protect power tools and exercise equipment from temporary overload

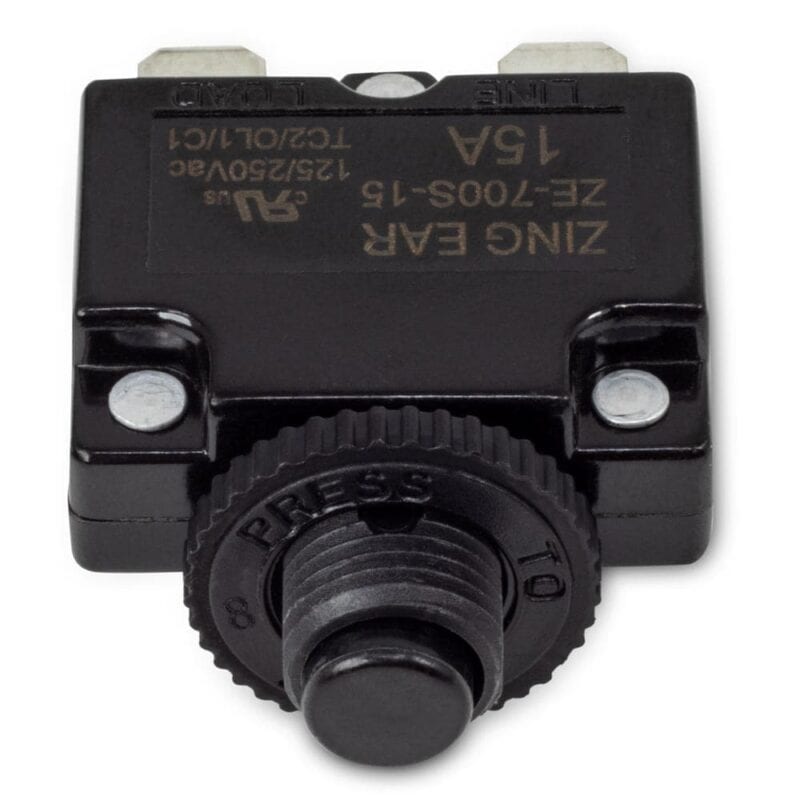

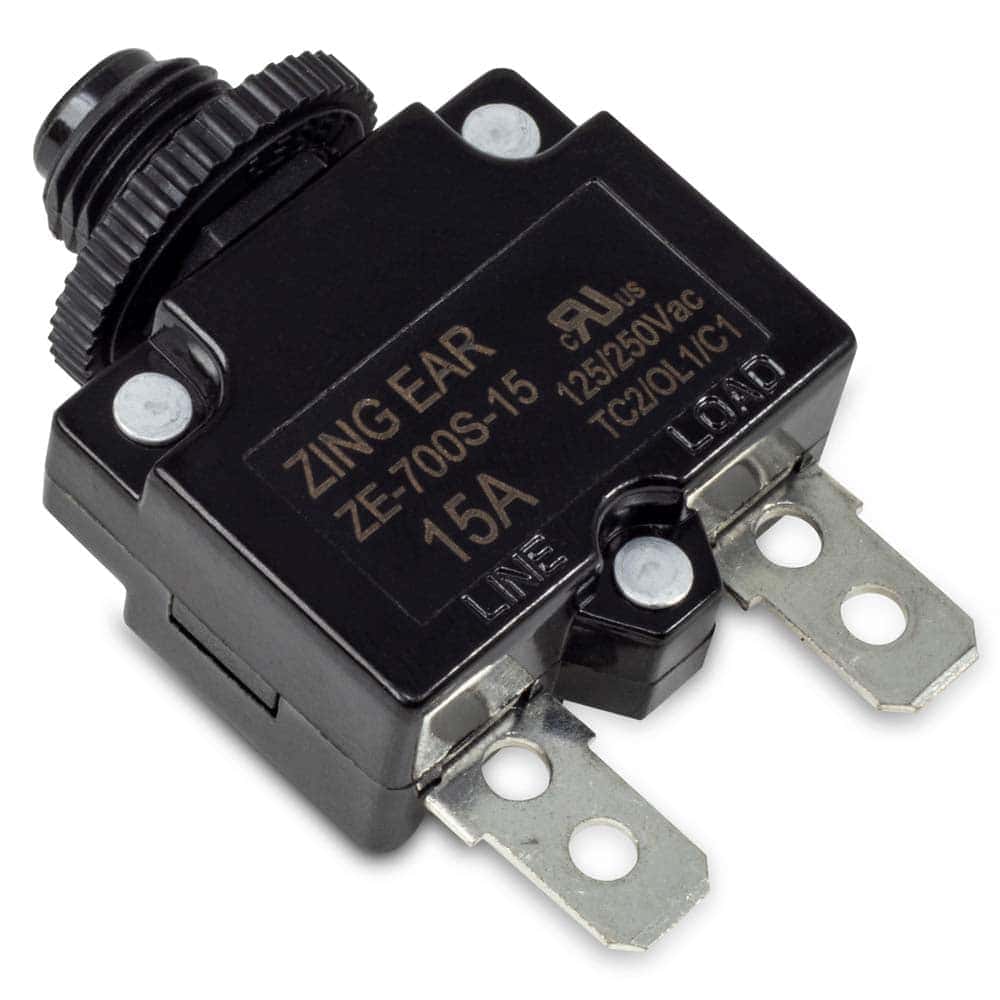

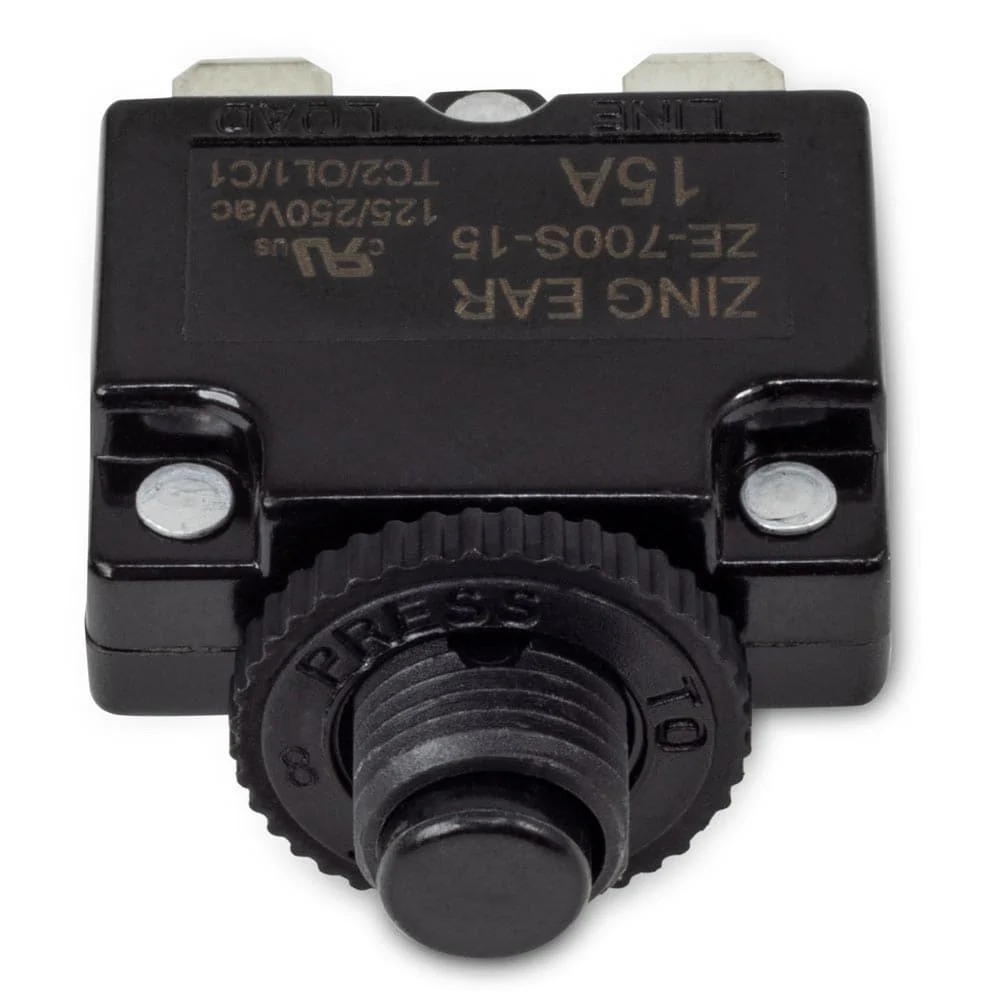

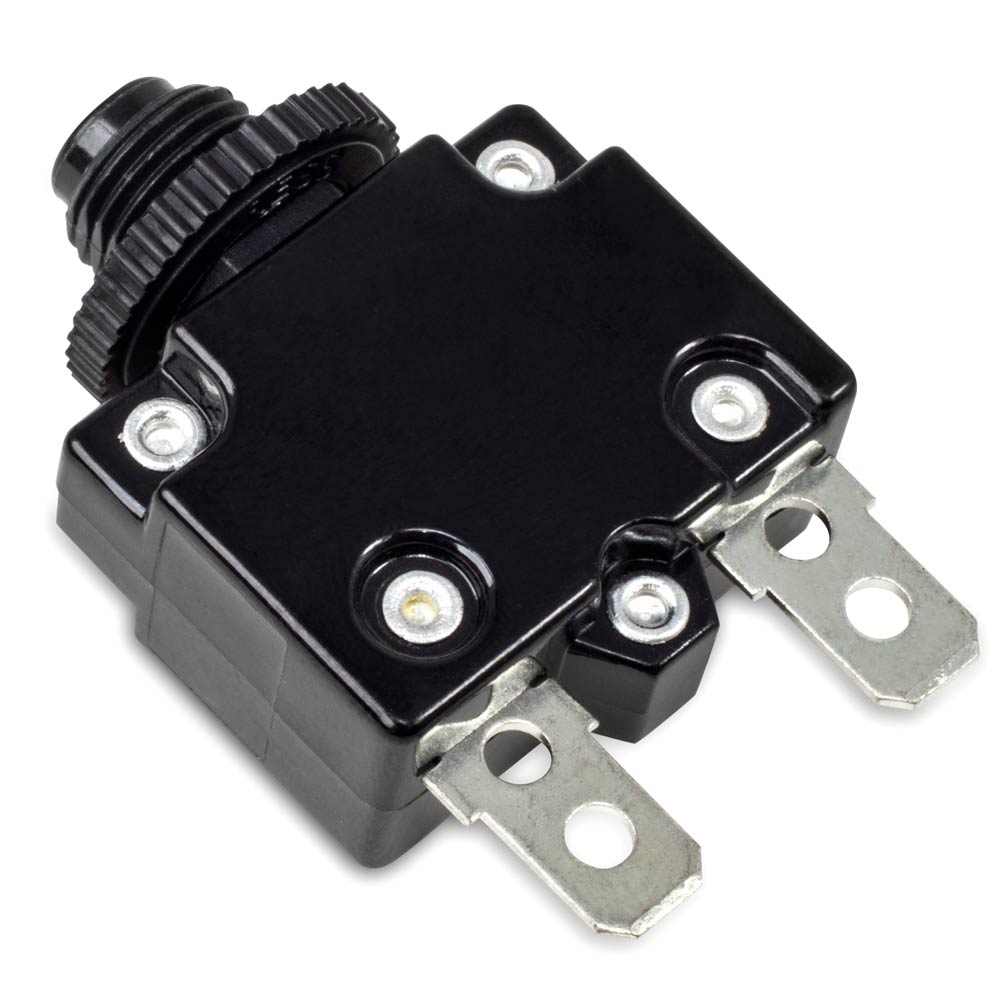

Zing Ear ZE-700s-15 MH Push Button Circuit Breaker

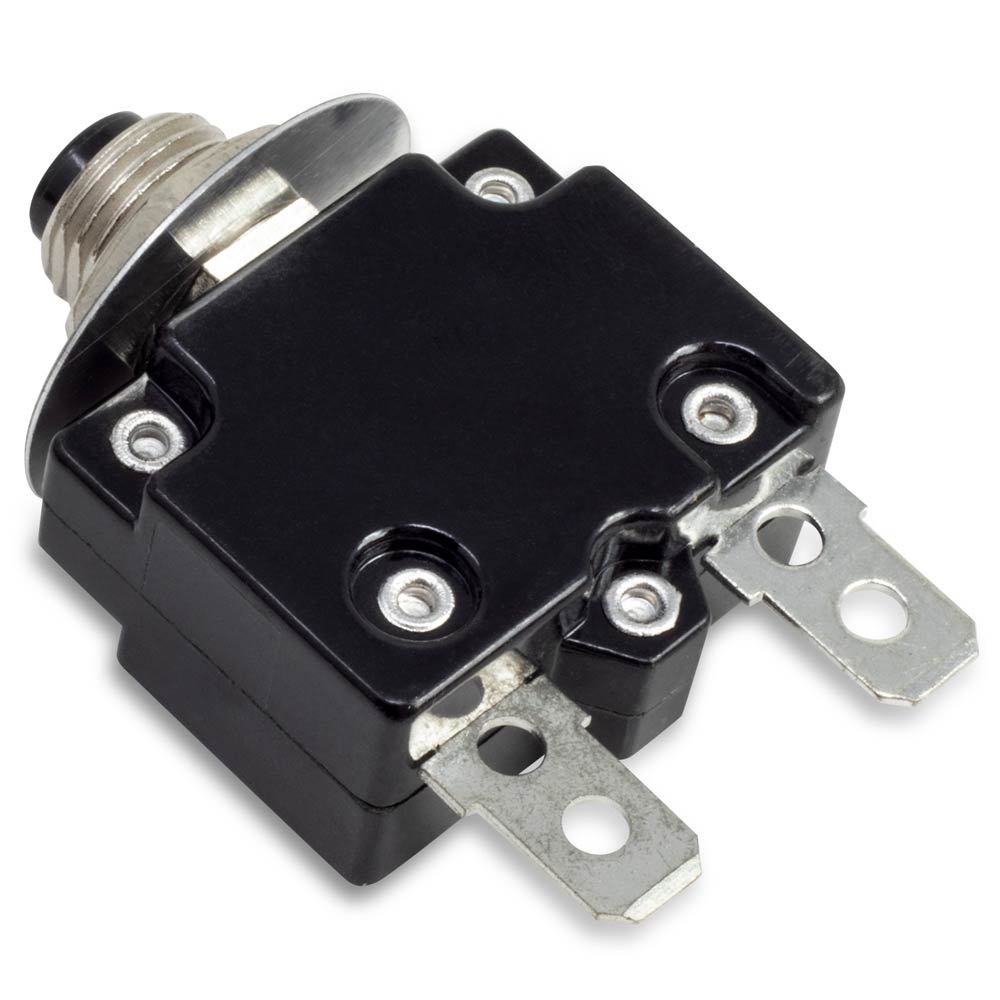

Zing Ear ZE-700S-15 15A Thermal Push Button Circuit Breaker
$6.95

Zing Ear ZE-700s-15 push to reset circuit breaker type rated at 15A 125/250VAC. This pushbutton circuit interrupter replaces similar miniature style thermal switch breakers such as Yeu Sheng, Carling, Tyco P&B, Rong Feng, Airpax, JoeMex and Hosiden.

ZE-700S-15 Applications

  • Power tools including table saws, sharpers, routers, bench saws.
  • Exercise equipment
  • Household and commercial appliances
  • Transportation, telecommunications, marine, medical, and power supplies

Zing Ear ZE-700S-15 Specifications

  • Model number: ZE-700s-15
  • Current rating: 15 Amps
  • Input power: 1250VAC / 250VAC
  • Dielectric Strength: 1500 VAC / 1 Minute
  • Insulation Resistance: >100M Ohms
  • Contact Endurance: 125VAC x 150% of Rated Current – 500 Cycles

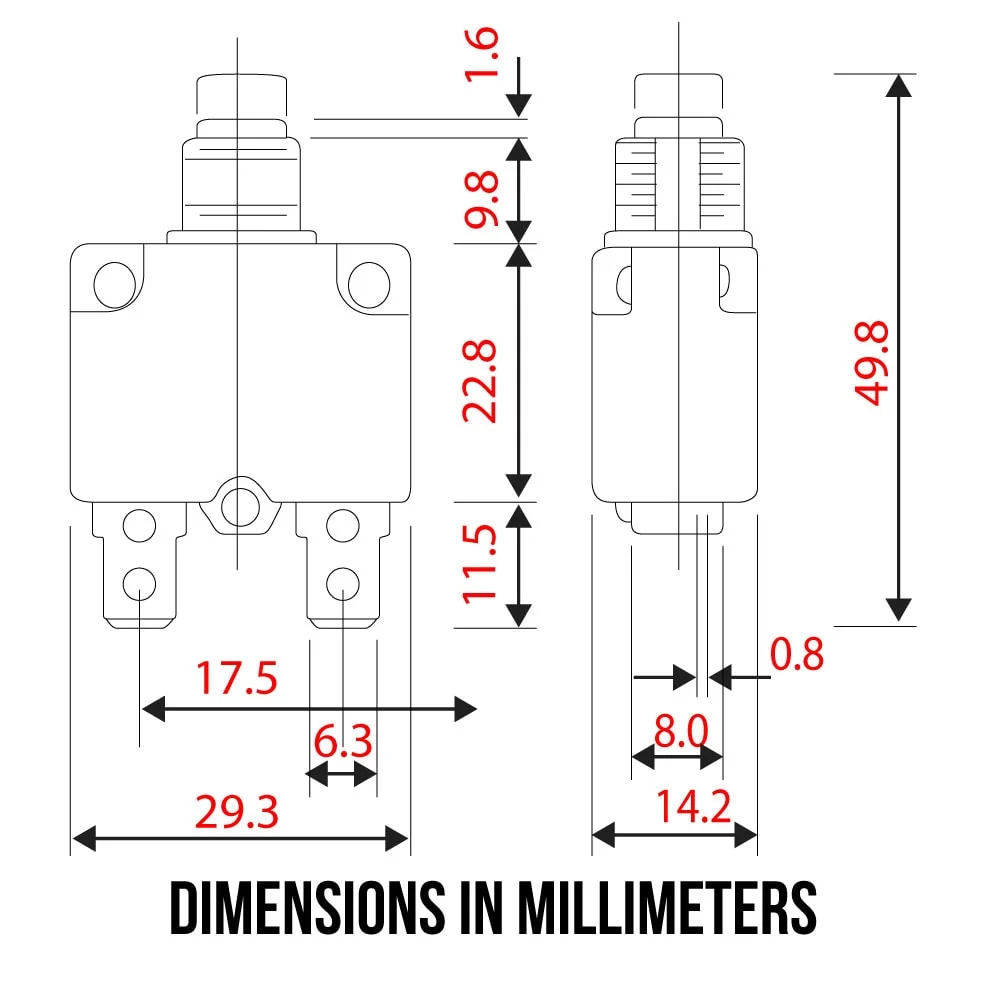

  • Panel mounts in a 0.430 inch (11 mm hole)
  • Function: manual push to reset / Auto Reset
