Zing Ear ZE-04 Inline Lamp Dimmer Switch (Black)

Zing Ear ZE-04 Wiring Instructions

Before You Start:

  • Turn off electrical current at source by switching off circuit breakers.
  • Failure to disconnect the power supply to the lamp or lighting system may cause a fire hazard, electrical shock, severe injuries or death.

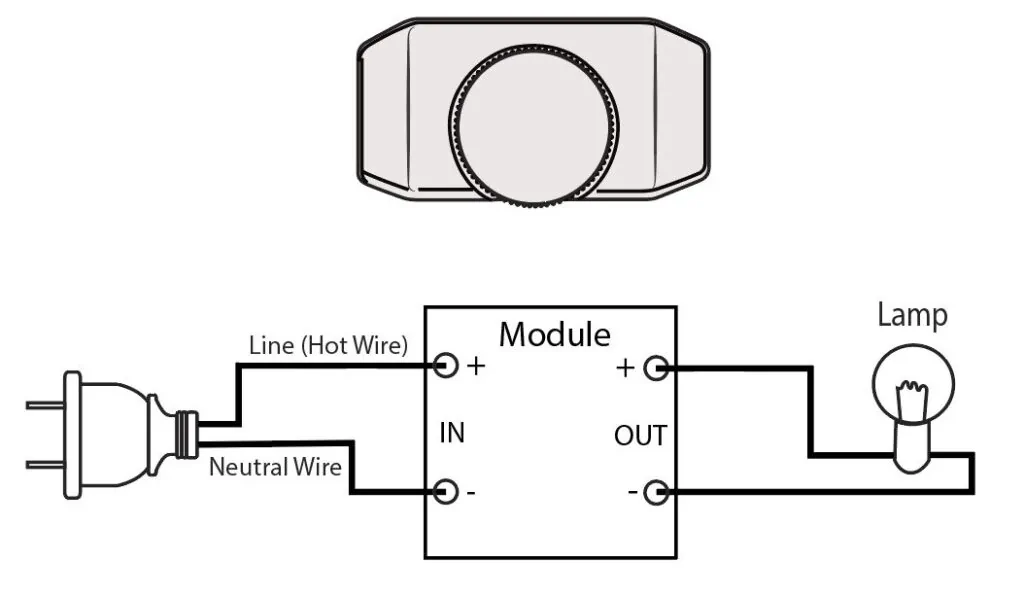

ZE-04 Dimmer Wiring Diagram:



ZE-04 Wiring Simulation:

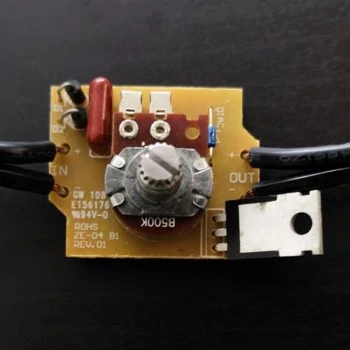

Zing Ear ZE-04 wiring (inside front view)

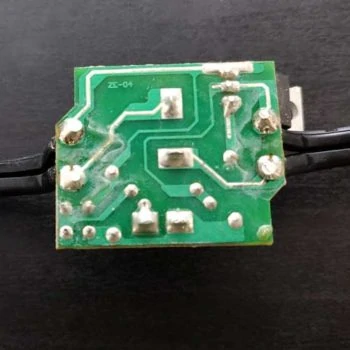

Zing Ear ZE-04 wiring (inside back view)
